POCRA PSC Risk Levels Matrix (PRL)

What is the POCRA Risk Level (PRL) Matrix

The POCRA Risk Level (PRL) Matrix is a data-driven risk visualization developed within the RISK4SEA platform, plotting more than 230,000 Port State Control Inspections (PSCIs) over the last 36 months. It combines two independent dimensions produced by the Port Call Risk Assessment (POCRA), PSCI probability and severity as follows:

• PSCI Priority (X-axis) reflecting the PSCI priority based on MoU/Local regime prioritization logic, and
• PSCI Severity (Y-axis) reflecting the result of the Ship-Port performance Tier (SPOT), refer to SPOT matrix research at www.risk4sea.com/SPOT

The interaction of these two dimensions generates nine distinct PSC Risk Levels (PRL 1–9) representing progressively escalating operational risk conditions. PRL 1 represents the lowest exposure environment, while PRL 9 represents the most challenging inspection environment observed in the global fleet.

The matrix is built entirely on observed global ocean going fleet behaviour, not theoretical assumptions, providing an empirical view of where inspections and detentions actually occur across all ships, ports, and regimes worldwide.

Notes on the PRL Matrix (Note# on Bottom RHS of the PRL Matrix Boxes):

Note 1: Priority III footprint remains materialPriority III accounts for 19% of PSCIs and 19% of detentions. This confirms that inspections and enforcement are not limited to “due window” logic alone, and vessels should not assume immunity when operating outside expected targeting windows.

Note 2: Priority I remains dominant but not exclusivePriority I represents 64% of PSCIs and 62% of detentions, confirming the expected concentration of enforcement focus. However, the remaining activity across Priority II and III demonstrates meaningful spill-over risk that must not be ignored.

Note 3: Low Risk environment still produces exposureLow Risk conditions generate 40% of PSCIs but only 8% of detentions. While the detention likelihood is clearly lower, the inspection footprint remains significant, reinforcing the need for baseline readiness even in apparently benign ports.

Note 4: HIGH Risk ports concentrate detention pressureHigh Risk environments account for 29% of PSCIs and 73% of detentions, confirming strong severity clustering. These ports represent the primary battlefield for PSC performance and demand enhanced preparation discipline.

Note 5: PRL 7 remains a deceptive transition zonePRL-7 contributes 4% of PSCIs and 14% of detentions, making it disproportionately dangerous relative to its inspection share. This is typically where complacency emerges due to moderate probability signals combined with elevated severity exposure.

Note 6: PRL 1-3 paradox persistsEven within PRL 1–3, detentions still occur (combined 15% of detentions across the low-risk band). Although these are the least challenging environments, the data confirms that zero-risk conditions do not exist, supporting the need for universal risk awareness.

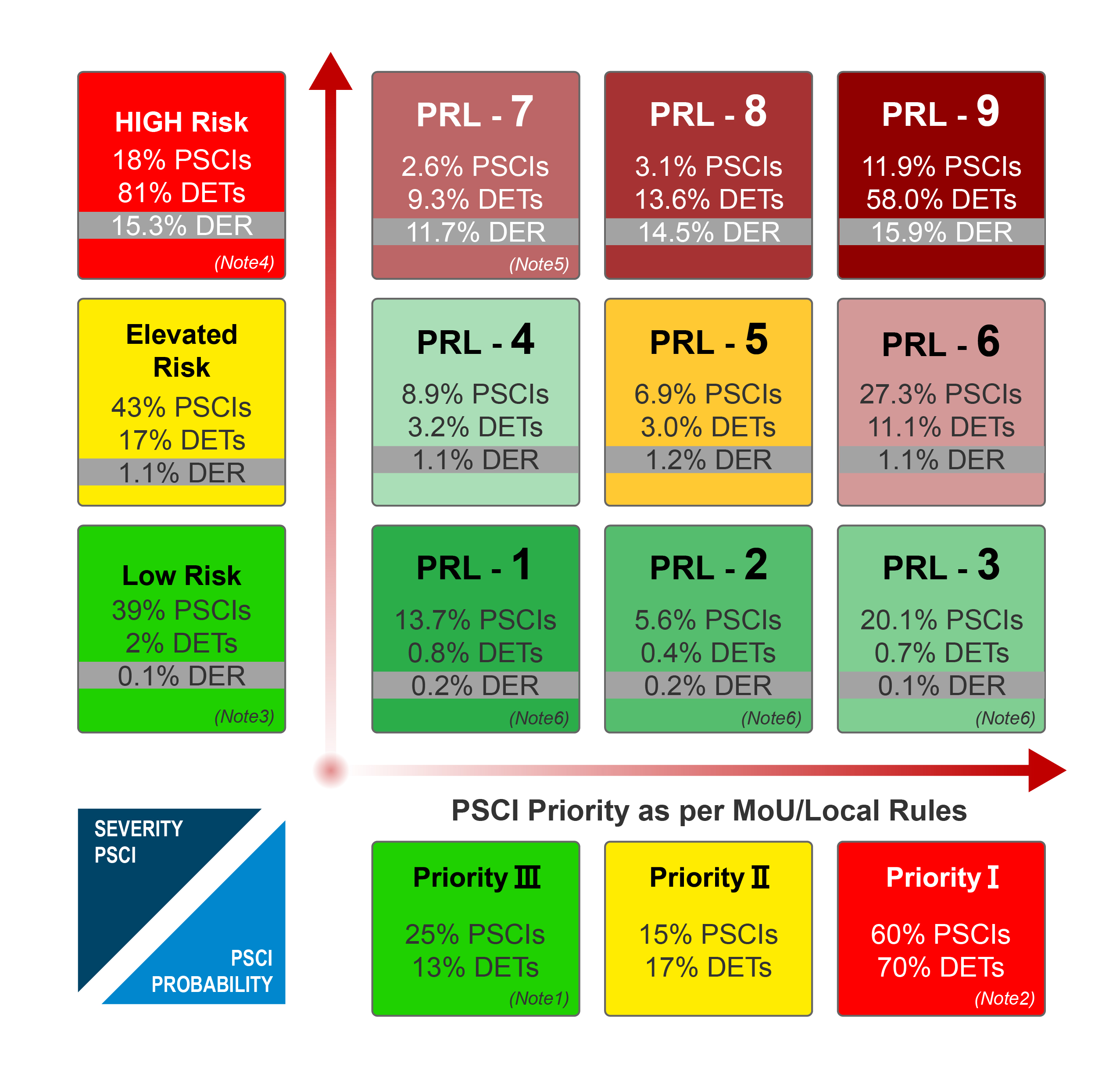

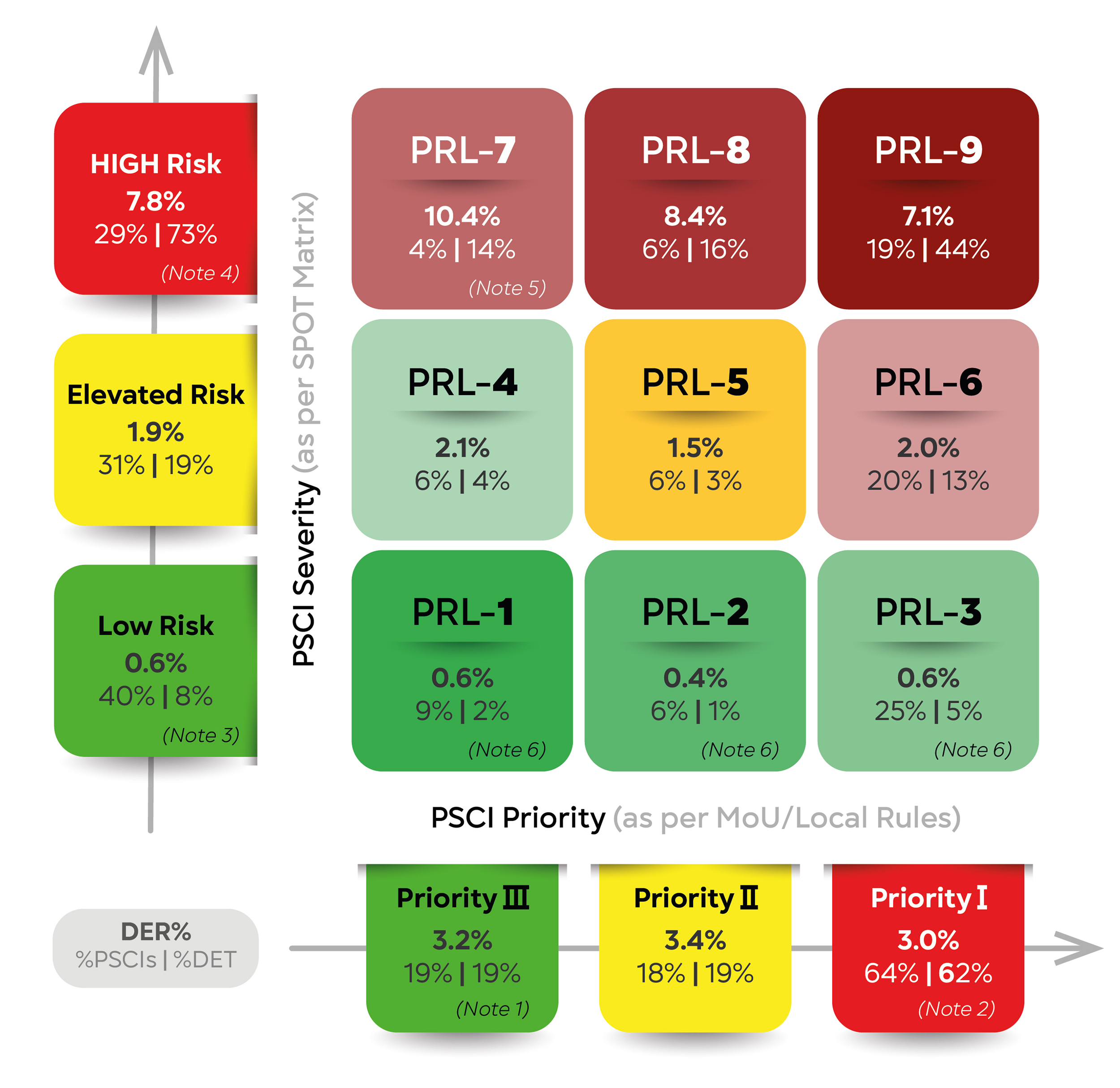

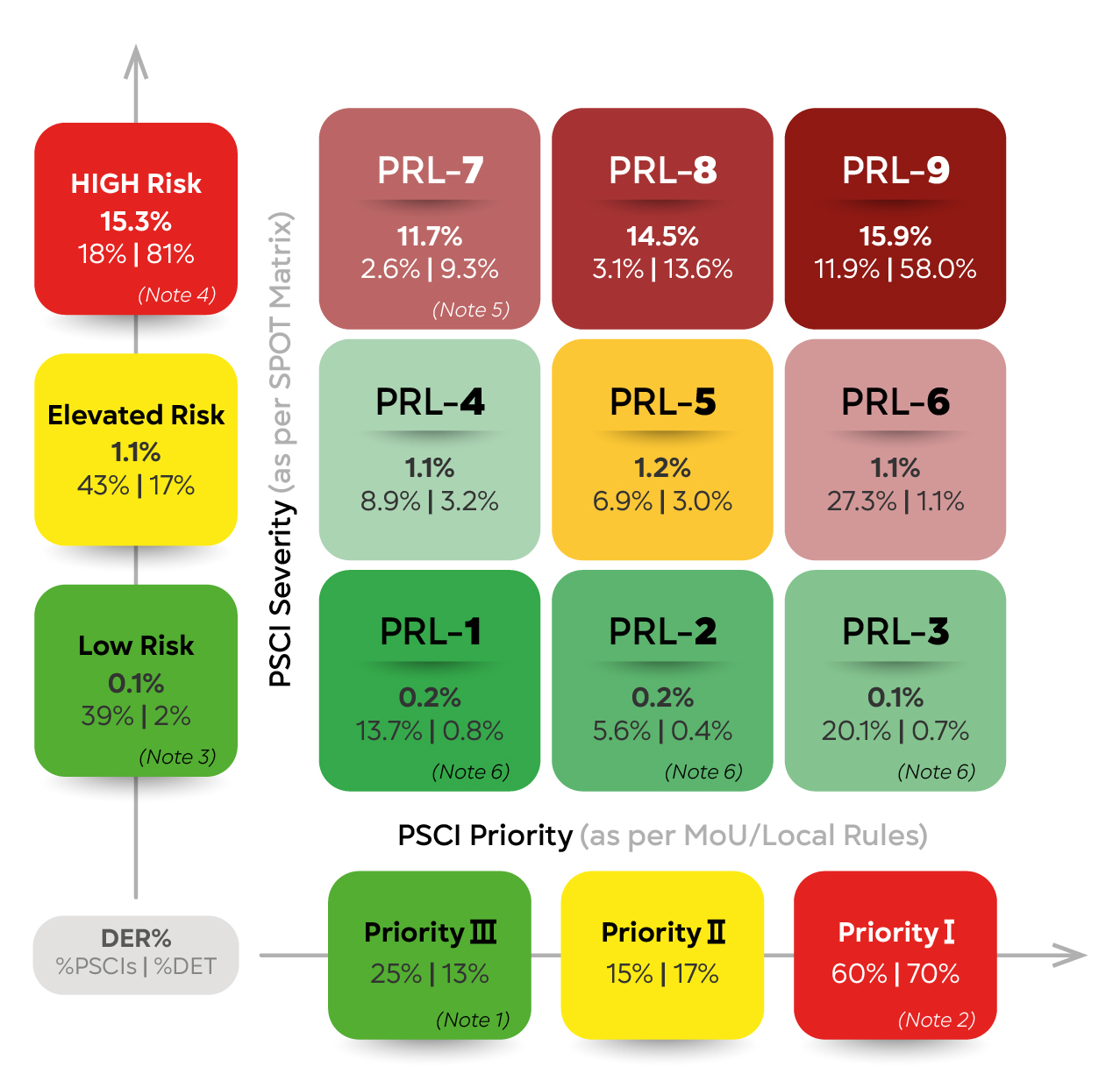

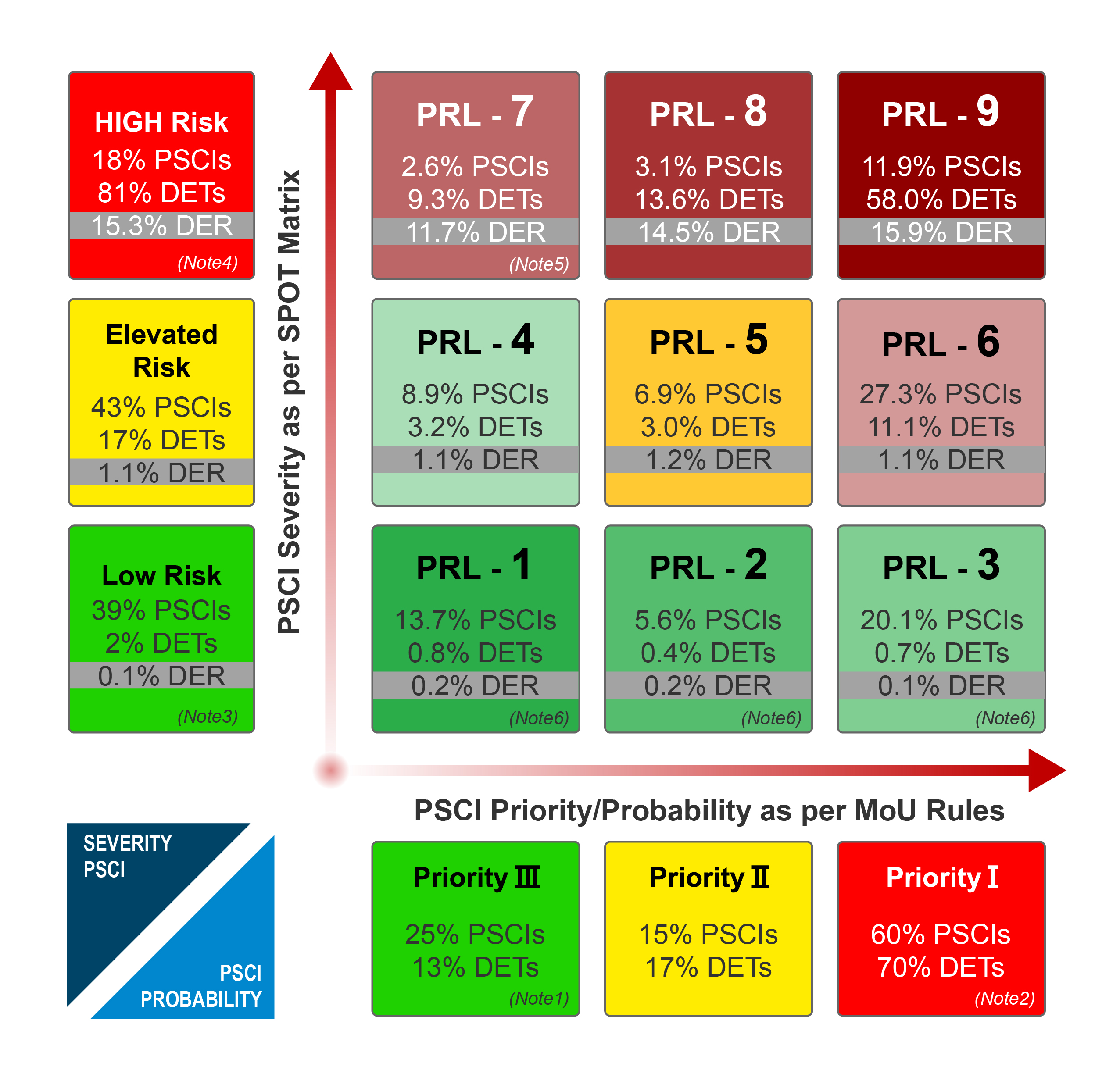

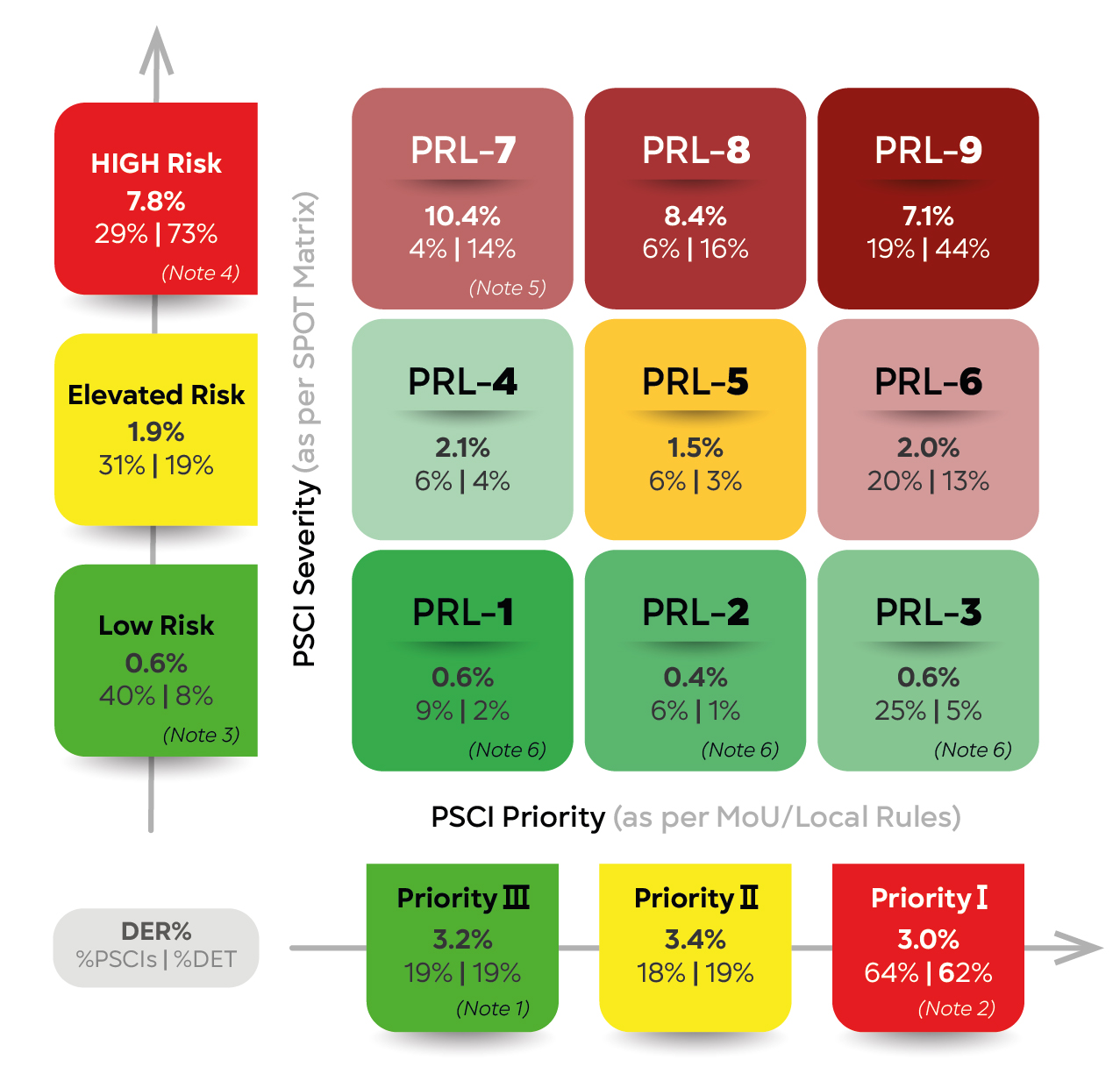

 Each PRL box in the matrix displays the % of PSCIs, % of Detentions, and the corresponding Detention Rate (DER) derived from the global dataset.

Why the PRL Matrix is important for use ahead of a PSCI

The PRL Matrix is critical because it replaces intuition and rule-of-thumb thinking with evidence-based preparation intelligence.

1. First, it enables operators to anticipate PSCI exposure more realistically, recognizing that PSCIs and detentions are distributed across multiple risk environments and not confined only to Priority I windows or traditionally “difficult” ports.
2. Second, it supports graduated preparation strategies. By understanding the combined probability–severity profile of an upcoming port call, operators can calibrate checklist depth, onboard readiness, and management attention proportionally to the actual risk.
3.  Third, the matrix highlights structural blind spots in the market. A meaningful share of inspections and even detentions still occurs in environments widely perceived as low pressure, reinforcing the RISK4SEA position that consistent preparation discipline across all PRLs is essential for PSC excellence.

Notes to the users of the RISK4SEA PSC Automation System

1.  Users configuring the PSC Automation System should interpret the PRL empirical data in the context of their own fleet trading pattern and historical performance, as different ship types and trade routes generate materially different PRL exposure profiles.
2. The Automation System provides full configurability across all nine risk levels. Users may adjust checklist depth, alert logic, notification routing, and escalation thresholds based on both inspection priority and expected post-inspection severity. Port-, country-, and MoU-specific conditions can be layered to further refine preparation workflows.
3. It is important to recognize that expanding the number of PRLs included in automated alerts will proportionally increase onboard email traffic. As a general noise-management principle, broader PRL coverage results in more alerts, while tighter filtering reduces communication volume but increases the risk of under-preparation.
4. Finally, users should remember that only a fraction of port calls convert into actual PSCIs (typically 5–15% globally, depending on segment and trade). This conversion is influenced by multiple operational factors including MoU targeting rules, PSCO availability, port workload, vessel stay duration, and terminal accessibility. The PRL Matrix therefore supports probability-informed preparation, not deterministic prediction, enabling operators to allocate attention where it statistically matters most.
